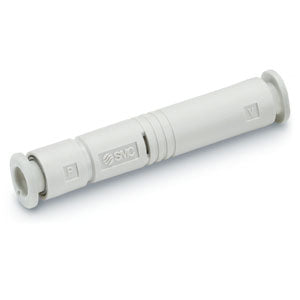

ZU-A, In-line Type Vacuum Ejector – ZU05SA
€18,79
Skip to product information
ZU-A, In-line Type Vacuum Ejector – ZU05SA
€18,79
- In-line type vacuum ejector. Compact and lightweight
- Suction flow rate up to 16 l/min
- Maximum vacuum pressure: -90 kPA
- Nozzle diameters: 0.3, 0.4, 0.5 and 0.7 mm
- Piping variations. Oval type one-touch fittings: Ø 4 and 6 mm. Screw-in connections: Rc 1/8.
Key features
- Maximum flow rate: 16 l/min (ANR).
- Maximum vacuum pressure: -90 kPA.
- Nozzle diameters: 0.3, 0.4, 0.5 and 0.7 mm.
- Dimensions: Overall length 47 to 59 mm. Ø 8.2 to 10.4 mm.
- Weight: 2.4 to 4.3 g.
Specifications
- Nozzle Diameter: 05 (0.5mm)
- Vacuum Pressure: S [-85 kPa (ZU03), -87 kPa (ZU04), -90 kPa (ZU05/07)]
- Port Size: ø4 One-touch Fitting (ZU03, ZU04), ø6 One-touch Fitting (ZU05, ZU07)
Additional information
- Part number: ZU05SA
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8414108990
