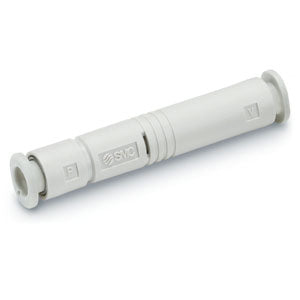

ZU*A, In-line Type Vacuum Ejector – ZU04SA
€17,74
- In-line type vacuum ejector. Compact and lightweight
- Suction flow rate up to 16 l/min
- Maximum vacuum pressure: -90 kPA
- Nozzle diameters: 0.3, 0.4, 0.5 and 0.7 mm
- Piping variations. Oval type one-touch fittings: Ø 4 and 6 mm. Screw-in connections: Rc 1/8.
Key features
- Maximum flow rate: 16 l/min (ANR).
- Maximum vacuum pressure: -90 kPA.
- Nozzle diameters: 0.3, 0.4, 0.5 and 0.7 mm.
- Dimensions: Overall length 47 to 59 mm. Ø 8.2 to 10.4 mm.
- Weight: 2.4 to 4.3 g.
Specifications
- Nozzle Diameter: 04 (0.4mm)
- Port Size: ø4 One-touch Fitting: for Nozzle 03, 04; ø6 One-touch Fitting: for Nozzle 05, 07
- Vacuum Pressure: S (-85 kPa For ZU03 /-87 kPa for ZU04; -90 kPa:For ZU05/07)
Additional information
- Part number: ZU04SA
- Lead time (days): 16
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8414108990
