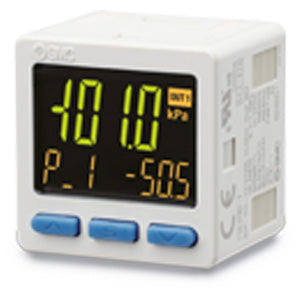

ZSE20B(F), High-Precision Digital Pressure Switch, 3-Screen Display (IP65) – ZSE20BF-V-M5-W
€132,67
Skip to product information
ZSE20B(F), High-Precision Digital Pressure Switch, 3-Screen Display (IP65) – ZSE20BF-V-M5-W
€132,67
- High-Precision Digital Vacuum Switches
- 3-Screen, 3-Colour Display
- Applicable fluid: air, non-corrosive gas, non-flammable gas, or general fluids
- Pressure ranges: from -101 to 100 kPa
- Repeatability: ±0.2 % F.S.
- Output: IO-Link, NPN/PNP or Analogue (Voltage/Current)
- Select response time: from less than 1.5 ms to 5 s.
- M12 connector available
- IP40 or IP65
- Consumption: 35 mA or less.
Key features
- 3-Screen Display High-Precision Digital Pressure Switch.
- 2 outputs + Analogue output (Voltage/Current) + IO-Link.
- IP65.
- Applicable fluid: Air, Non-corrosive gas, Non-flammable gas.
- Pressure range: -101 to 100 kPa.
- Repeatability: ±0.2 % F.S.
- Response time: 1.5 ms or less.
- Consumption: 35mA or less.
Specifications
- Rated pressure range: BF (-100 to 100 kPa)
- Output Specification: V (PNP Open Collector 2 Outputs + Analogue Current Output)
- Unit Specification: w/Unit Selection Function
- Piping Specification: M5 (Female Thread)
- Lead Wire: W (Lead Wire w/Connector, 5-core, 2 m Lead Wire, Waterproof)
- Bracket: None
- Operation Manual: Operation Manual, w/o Calibration Certificate
Additional information
- Part number: ZSE20BF-V-M5-W
- Lead time (days): 21
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8536501990
