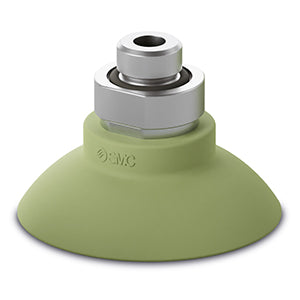

Bowl Shape with Non-Slip Feature – ZP3M – ZP3M-T80RFS-BG03-MF
€89,72
- For the adsorption of oily flat and curved workpieces
Key features
- Pad sizes: Ø 32, Ø 40, Ø 50, Ø 63, Ø 80, Ø 100
- Non-slip special ribs
- Material: FS61 (Fluoro-based rubber)
- Pad hardness (Shore A: ±5°): 60º
- Surface operating temperature range: 0 to 200 ºC
- Adapter operating temperature range: 0 to 150 ºC
- Mesh filter opening: 250 μm
- Options: male and female thread and square vertical vacuum inlet.
Specifications
- Vacuum Inlet Direction: T (Vertical)
- Pad Diameter: ø80
- Material: FS (FS61, Fluoro-based Rubber, Green)
- Connection Thread and Type: BG03 (Direct Mounting, Female Thread, G3/8)
- Mesh Filter: MF (w/Mesh Filter)
Additional information
- Part number: ZP3M-T80RFS-BG03-MF
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479907099
