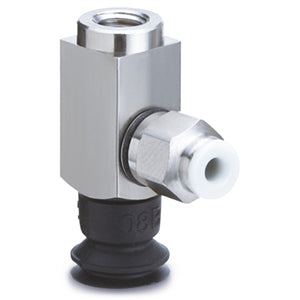

Compact with Adapter & One-touch Fittings - ZP3-Y*U/UM – ZP3-Y13UMN-B5-B5
€8,50
Skip to product information
Compact with Adapter & One-touch Fittings - ZP3-Y*U/UM – ZP3-Y13UMN-B5-B5
€8,50
VAT not included.
- For the adsorption of general workpieces
Key features
- Pad Sizes: Ø 1.5 to Ø 16 mm
- Shapes: Flat Type, Flat Type with Groove
- Materials: NBR, Silicone Rubber, Urethane Rubber, FKM, Conductive NBR, Conductive Silicone Rubber
- Options: Female Thread, One-touch and Barb Fitting, Lateral Vacuum Inlet.
Specifications
- Pad Diameter: 13mm
- Pad Type: UM (Flat with groove)
- Material: N (NBR)
- Mounting: B5 (M5 x 0.8 Female Thread)
- Vacuum Inlet: B5 (M5 x 0.8 Female Thread)
Additional information
- Part number: ZP3-Y13UMN-B5-B5
- Lead time (days): 7
- Minimum order quantity: 1
- Country of origin: CZ
- TARIC code: 8479907099
