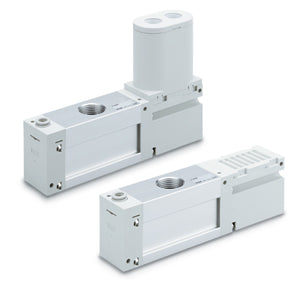

ZL3/ZL6, Multi-stage Generator – ZL6HF04-EBG
€615,94
Skip to product information
ZL3/ZL6, Multi-stage Generator – ZL6HF04-EBG
€615,94
VAT not included.
- Energy-saving, large flow rate, 3-stage diffuser construction ejector
- Energy saving function selectable, with reduction of up to 90%
- Suction flow rate up to 600 l/min, increased by 250% compared to one-stage ejectors
- Supply valve/release valve combinations
- Exhaust specifications: built-in silencer (standard), port exhaust
- Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter
- All-in-one design with integrated components to make it compact and lightweight.
Key features
- Nozzle diameter: Ø1.5 or Ø1.9 mm.
- Double port branch specification selectable.
- Maximum suction flow rate: 300 l/min(ZL3); 600 l/min(ZL6) (ANR).
- Air consumption: 135 or 150 l/min(ZL3); 270 or 300 l/min(ZL6) (ANR).
- Basic model weight: 390 g(ZL3); 470 g(ZL6).
- Exhaust specifications: built-in silencer (standard), port exhaust.
- Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter.
- Standard supply pressure: 0.35 or 0.5 MPa.
Specifications
- Vacuum (2/V) Port Size/Supply (1/P) Port Tubing O.D: F04 [Vacuum: 2 x G1/2 (Branch Spec.); Supply: 8 (Metric)]
- Supply Pressure: H (0.50 MPa)
- Light/Surge Voltage Supprressor: None
- Max. Suction Flow Rate: 6 [600 L/min (ANR)]
- Supply Valve/Release Valve Combination: w/o Valve
- Vacuum Pressure Sensor: E (Vacuum Pressure Switch, Vacuum 2 Outputs)
- Unit: w/Unit Switching Function
- Manual Override: Non-locking Push Type
- Electrical Entry: None
- Rated voltage: None
- Output: B (PNP Open Collector)
- Exhaust Method: Silencer Exhaust
- Option: None
- Lead Wire: G (Lead Wire w/Connector; Length: 2 m; Included)
Additional information
- Part number: ZL6HF04-EBG
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8414108990
