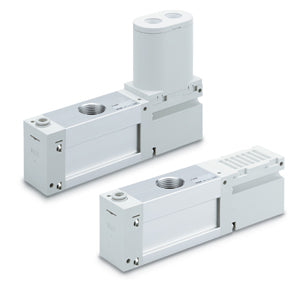

ZL3/ZL6, Multi-stage Generator – ZL3HF04-K15LOZ-VBW
€801,82
Skip to product information
ZL3/ZL6, Multi-stage Generator – ZL3HF04-K15LOZ-VBW
€801,82
- Energy-saving, large flow rate, 3-stage diffuser construction ejector
- Energy saving function selectable, with reduction of up to 90%
- Suction flow rate up to 600 l/min, increased by 250% compared to one-stage ejectors
- Supply valve/release valve combinations
- Exhaust specifications: built-in silencer (standard), port exhaust
- Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter
- All-in-one design with integrated components to make it compact and lightweight.
Key features
- Nozzle diameter: Ø1.5 or Ø1.9 mm.
- Double port branch specification selectable.
- Maximum suction flow rate: 300 l/min(ZL3); 600 l/min(ZL6) (ANR).
- Air consumption: 135 or 150 l/min(ZL3); 270 or 300 l/min(ZL6) (ANR).
- Basic model weight: 390 g(ZL3); 470 g(ZL6).
- Exhaust specifications: built-in silencer (standard), port exhaust.
- Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter.
- Standard supply pressure: 0.35 or 0.5 MPa.
Specifications
- Max. Suction Flow Rate: 3 [300 L/min (ANR)]
- Supply Pressure: H (0.50 MPa)
- Vacuum (2/V) Port Size/Supply (1/P) Port Tubing O.D: F04 [Vacuum
- Supply: 8 (Metric)]
- Exhaust Method: Silencer Exhaust
- Supply Valve/Release Valve Combination: K1 [Supply Valve (N.C.), Release Valve (N.C.)]
- Rated voltage: 5 (24 VDC)
- Electrical Entry: LO (L Plug Vertical Connector w/o Connector)
- Light/Surge Voltage Supprressor: Z (w/light surge voltage suppressor)
- Manual Override: Non-locking Push Type
- Vacuum Pressure Sensor: V (Pressure Switch for Vacuum w/Energy Saving Function, Compound Pressure 1 Output)
- Output: B (PNP Open Collector)
- Unit: w/Unit Switching Function
- Lead Wire: W (Lead Wire for Switch w/Energy Saving Function
- Length: 2 m
- Included):
- Option: None
Additional information
- Part number: ZL3HF04-K15LOZ-VBW
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8414108990
