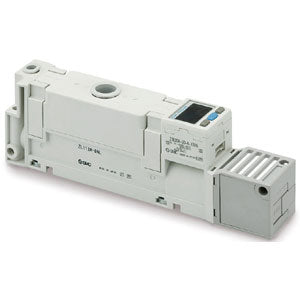

ZL112A, Multi-stage Ejector – ZL112A-K15LOU-DVL
€554,21
Skip to product information
ZL112A, Multi-stage Ejector – ZL112A-K15LOU-DVL
€554,21
- Energy-saving, large flow rate, 3-stage diffuser construction ejector
- Energy saving function selectable, with reduction of up to 90%
- Suction flow rate up to 600 l/min, increased by 250% compared to one-stage ejectors
- Supply valve/release valve combinations
- Exhaust specifications: built-in silencer (standard), port exhaust
- Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter
- All-in-one design with integrated components to make it compact and lightweight.
Key features
- Energy saving multistage vacuum ejector.
- Nozzle diameter: Ø1.2 mm.
- Maximum suction flow rate: 100 l/min (ANR).
- Air consumption: 57 l/min (ANR).
- Basic model weight: 180 g.
- Exhaust specifications: built-in silencer (standard), port exhaust.
- Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter.
Specifications
- Output Specifications: V (PNP Open Collector 2 Outputs + Analogue Current Output)
- Electrical Entry: LO (L Plug Vertical Connector w/o Connector)
- Unit Specifications: w/Unit Switching Function, Not for Use in Japan)
- Supply(P),Vacuum(V), One-touch Fitting: Supply (P) Port: ø6; Vacuum (V) Port: ø12
- Vacuum Pressure Sensor: D (Digital Vacuum Pressure Switch)
- Rated voltage: 5 (24 VDC)
- Supply/Release Valve Combination: K1 [Supply Valve (N.C.), Release Valve (N.C.)]
- Light/surge voltage suppressor: U (w/Light/Surge Voltage Suppressor, Non-polar)
- Lead Wire Specifications: L (Lead Wire w/Connector, 2m)
- Option: None
- Exhaust Type: Silencer Exhaust
- Manual Override: Non-locking Push Type
Additional information
- Part number: ZL112A-K15LOU-DVL
- Lead time (days): 27
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8414108990
