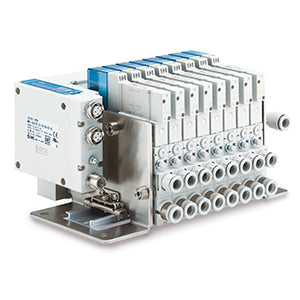

ZKJ – Vacuum Ejector for Fieldbus System – ZKJ10C8H-A5U-T1
€301,78
VAT not included.
- The ZKJ series is a single energy-saving generator unit with reduced air consumption with a valve and pressure sensor.
Key features
- Suction flow rate of up to 74 l/min with a vacuum pressure of -89 kPa
- Nozzle sizes: Ø 0.7, Ø 1.0, Ø 1.2, Ø 1.5
- Prevents work pieces from dropping suddenly when the power goes out or is turned off
- Exhaust sealing function for the quick release of workpieces
- Exhaust specifications: port exhaust, high-noise reduction silencer
- IP65 enclosure.
Specifications
- Exhaust: H (High-noise Reduction Silencer Exhaust)
- Nominal Nozzle Size: 10 (ø1.0)
- Rated voltage: 5 (24VDC)
- Light/surge voltage suppressor: U (Light: Yes; Surge Voltage Suppressor: Yes; Common Spec: Non-polar)
- Option: Without Option
- Vacuum Port (V), Supply Port (P): C8 (Metric; Vacuum Port: ø8; Supply Port: Plug)
- Combination of Supply and Release Valve: A (Supply Valve: N.C.; Release Valve: N.C.)
- Pressure sensor: T1 (-100 to 100 KPa)
- Exhaust Sealing Valve: None
Additional information
- Part number: ZKJ10C8H-A5U-T1
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8414108990
