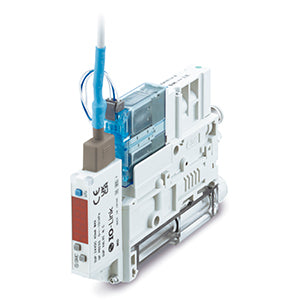

ZK2*A, Vacuum Unit, Ejector system single unit with IO-Link – ZK2A15K55HA-06
€385,48
Skip to product information
ZK2*A, Vacuum Unit, Ejector system single unit with IO-Link – ZK2A15K55HA-06
€385,48
VAT not included.
- Advanced vacuum unit (ejector/pump/manifold systems) with low noise and high efficiency options.
- Energy saving digital vacuum switch: Intermittent energising (supply/exhaust) only when vacuum decreases.
- More efficient 2-stage ejector: Air consumption 30% reduced.
- Dual 2 port valve (release valve/supply valve): Can hold vacuum even when the power goes out or is turned off. Prevents the sudden dropping of workpieces.
- All-in-one design with integrated components to make it compact and lightweight.
- Control and monitor up to 32 outputs via a wide variety of serial interface communication protocols
- EX260 Compatible protocols: IO-Link, DeviceNet, PROFIBUS DP, CC-Link, EtherNet/IP™, EtherCAT, PROFINET, Ethernet POWERLINK
- EX500 Compatible protocols: Getaway decentralised system
- EX600 Compatible protocols: DeviceNet, PROFIBUS DP, CC-Link, EtherNet/IP™, EtherCAT, PROFINET, wireless, compatible wireless base.
- Retrofitting of vacuum sensor and manifold rail mounting bracket allowed.
Key features
- Dual 2 port valve (Release valve/Supply valve)
- Efficient 2-stage ejector
- Pressure sensor / switch variations with energy-saving function available
- Outputs: IO-Link.
Specifications
- IO-Link Compatible Vacuum Pressure Switch: 5 (with Energy Saving Function / 100 to -100 kPa / Unit Selection Function)
- Connector: H [w/Lead Wire with Connector for IO-Link (With M12 Connector): 300mm]
- Bracket: None
- Body type: A (Single Unit - Silencer Exhaust)
- Nominal Nozzle Size: 15 (ø1.5)
- Supply Valve / Release Valve: K (N.C. / N.C.)
- Individual Release Pressure Supply: None
- Screwdriver Operation Type Long Lock Nut: None
- Vacuum Break Flow Adjustment: None
- Vacuum (V) Port: 06 [ø6 One-touch Fitting (Metric)]
- Rated Voltage: 5 (24 VDC)
- Exhaust Interference Prevention Valve: None
Additional information
- Part number: ZK2A15K55HA-06
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8414108990
