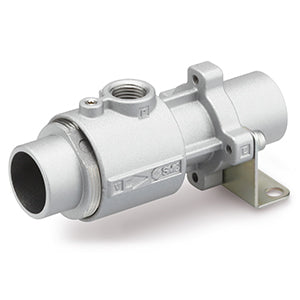

ZHV, Vacuum Flow – ZHV10-F
€68,82
Skip to product information
ZHV, Vacuum Flow – ZHV10-F
€68,82
- Discharge flow rate up to 6820 l/min
- Suction flow rate up to 5270 l/min with a vacuum pressure of -6 kPa
- Fluid passage diameters [mm]: Ø 13, Ø 21.6, Ø 30 and Ø 42
- Possibility to adjust the suction and discharge flow rate
- Compact and lightweight design
- Air-driven, maintenance-free.
Key features
- Discharge flow rate up to 6820 l/min
- Suction flow rate up to 5270 l/min. with a vacuum pressure of -6 kPa
- Fluid passage diameters [mm]: Ø 13, Ø 21.6, Ø 30 and Ø 42
- Possibility to adjust the suction and discharge flow rate
- Compact and lightweight design
- Air-driven, maintenance-free.
Specifications
- Passage Diameter: 10 (ø13)
- SUP Port Thread: F (G)
- Accessory: None
Additional information
- Part number: ZHV10-F
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
