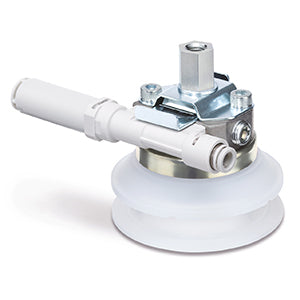

Vacuum Pad with Ejector - ZHP – ZHP80UMSB-15C6S
€168,59
VAT not included.
- Integration of ejector and pad in a single compact unit.
- Lock-plate structure that enables easy, one-touch replacement of the pad.
- More efficient two-stage ejector mounted, with improved vacuum generation efficiency: suction flow rate increased by 50 %, and air consumption reduced by 30 %.
- Through-hole silencer placed in the release, thus discharging directly to atmosphere - noise reduced and clogging minimised.
- 3 port locations available in the adapted pad, allowing for variety of connections and for daisy-chain piping.
Key features
- Pad Sizes: Ø 63 - Ø 80 mm
- Shapes: Bellows Type with Groove, Flat Type with Groove
- Materials: NBR, Silicone Rubber, Urethane Rubber, FKM
Specifications
- Pad Diameter: 80 (ø80)
- Pad Form: UM (Flat Type with Groove)
- Pad Material: S (Silicone Rubber, White)
- Mounting: B (Metric, Male Thread, M10)
- Ejector/Nozzle Size: 15 (ø1.5)
- Supply Port: C6 (Metric, ø6 One-touch Fitting)
- Exhaust: S (Silencer Exhaust)
Additional information
- Part number: ZHP80UMSB-15C6S
- Lead time (days): 21
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8414108990
