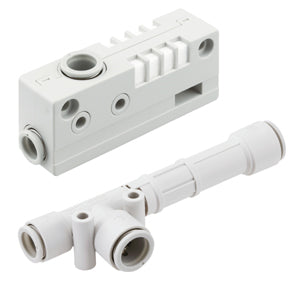

ZH-A, Vacuum Ejector, Box Style/Body Ported Style, Metric – ZH18BLA-10-12
€76,70
- Body ported type/ Box type vacuum ejector. Compact and lightweight
- Suction flow rate up to 155 l/min
- Nozzle diameters: 0.5, 0.7, 1, 1.3, 1.5, 1.8 and 2 mm
- Multiple piping variations: One-touch fittings and screw-in connections (G/Rc/NPT)
- 4 mounting types: direct, standard bracket, L-bracket or DIN rail.
Key features
- One-touch fittings: Ø 6, 8, 10 and 12 mm. Screw-in connections: 1/8" to 1/2" (Rc/G).
Specifications
- Accessories: W/ Bracket - W/o Silencer (or None in the Case of Box Style)
- Nozzle Diameter: 18 (Ø 1.8 mm)
- Model: B (Box Style)
- Port SUP.: 10 (One-touch Fitting Ø10 mm)
- Port EXH.: None
- Vacuum Pressure: L (-48 kPa [ZH05 to 13]; -66 kPa [ZH15 to 20])
- Port VAC.: 12 (One-touch Fitting Ø12)
Additional information
- Part number: ZH18BLA-10-12
- Lead time (days): 20
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8414108990
