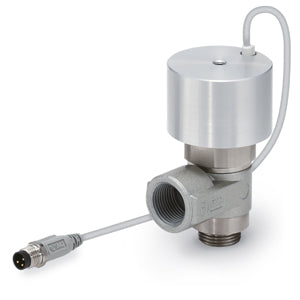

XT34-303, Pilot Check Valve with State Detection – XT34-303-F03

• The XT34-303 series of pilot operated check valve is a direct mounted model with threaded connections.  It features an auto switch for confirmation of the closed state of the valve.  This output can be used for a confirmation signal in a machine safety scheme.

Key features

• According to ISO 13849.
• Solid state auto switch PNP: D-M9.
• Lead wire connection : 500 mm and M8 connector.
• Operating pressure range: 0.1 to 0.7 MPa.
• Ambient and fluid temperatures : -5 to 60°C (No freezing).

Specifications

• Body Size: F03 (3/8)

Additional information

• Part number: XT34-303-F03
• Lead time (days): 5
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8481209090

Documents

• Catalogue (PDF)
• CAD model
• Installation manual
• CE certificate
