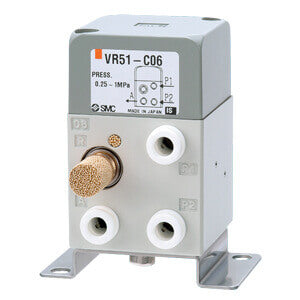

VR51, Two Hand Control Valve | VR51-C06
€314,61
VAT not included.
Two hand control valve
Series VR1210/1200 shuttle valve is a 3 ported valve with one output and 2 pneumatic signal and input ports. Output is always supplied by high pressure inlet. The VR12**F series are interrupters for control of air pressure signal system lines. Piping is possible in any position and the one-touch fittings make piping connections simple. Time delay valve series VR2110 with its combination of adjustable orifice and fixed flow allows transmission of a pneumatic signal after a fixed time period.
Features
- Operating pressure: 0.25 to 1 MPa
- Proof pressure: 1.5 MPa
- Ambient and fluid temperature: -5 to 60°C (No freezing)
- Port size: Metric ø6, Inch ø1/4
- Optional bracket is available
Specifications
- Part number: VR51-C06
- Item number: 00104485
- Connection Piping Size: C06 (Flame Resistant One-Touch Fitting ø6)
- Option: None
- Lead time: 5 days
- Country of origin: JP
