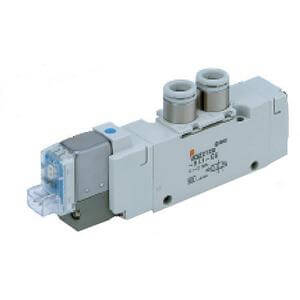

VQZ**2*, 1000/2000/3000 Series, 5 Port Solenoid Valve, Body Ported | VQZ2420B-5MO1-C6F-Q
€107,09
Skip to product information
VQZ**2*, 1000/2000/3000 Series, 5 Port Solenoid Valve, Body Ported | VQZ2420B-5MO1-C6F-Q
€107,09
VAT not included.
5 PORT SOLENOID VALVE
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
Features
- Fluid: air, inert gas
- Operating pressure range: 0.1 - 0.7MPa
- Effective area mm 2 (Cv):
- metal seal 2.0 (0.11) - 12.6 (0.7);
- rubber seal 3.1 (0.17) - 16.2 (0.9)
- Coil rated voltage: 12, 24VDC;
- 100, 110, 200, 220VAC
- Response time (ms) standard 1W, high pressure 1.5W:
- metal seal 25 or less; rubber seal 30 or less
- Ambient & fluid temperature: -10 to 50°C
Specifications
- Part number: VQZ2420B-5MO1-C6F-Q
- Item number: 02991104
- Series: 2 (VQZ2000)
- Function: B (High Speed Response 0.9W - DC Only)
- Electrical Entry: MO (M Plug w/o Connector, w/Light & Surge Suppressor)
- Type of actuation: 4 (3 Position Exhaust Centre)
- Foot Bracket: None
- Seal Type: 0 (Metal Seal)
- IP65 Compliant: No
- Port Size: C6 (ø6 One-touch Fitting)
- Coil Voltage: 5 (24VDC)
- CE Compliant: Q (CE Marked)
- Manual Override: Non-locking Push Style
- Thread: F (G)
- Lead time: 29 days
- Country of origin: JP
