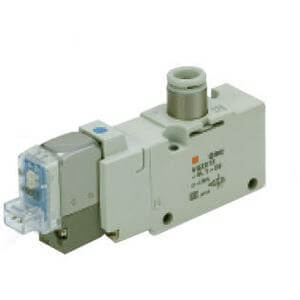

VQZ**2, 200/300 Series, 3 Port Solenoid Valve, Body Ported | VQZ232B-5G1-C6F-Q
€62,49
VAT not included.
3 PORT SOLENOID VALVE
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
Features
- Fluid: air, inert gas
- Operating pressure range: 0.1 - 0.7MPa
- (high pressure style: 1.0MPa)
- mm²: VQZ200 7,2 - 10,9; VQZ300 13,6 - 16,3
- Coil rated voltage: 12, 24VDC;
- 100, 110, 200, 220VAC
- Response time:
- VQZ200 metal seal 14ms or less; rubber seal 15ms or less
- VQZ300 metal seal 17ms or less; rubber seal 25ms or less
Specifications
- Part number: VQZ232B-5G1-C6F-Q
- Item number: 02232092
- Series: 2 (VQZ200)
- Type of Actuation: 3 (Rubber Seal N.C.)
- Configuration: B (High Speed Response, 0.9W)
- Coil Voltage: 5 (24VDC)
- Lead Wire: G (Grommet)
- Manual Override: Non-locking Push Style
- IP65 Compliant: None
- Port Size: C6 (ø6 One-touch Fitting)
- Thread Type: F (G)
- Option: None
- Lead time: 18 days
- Country of origin: JP
