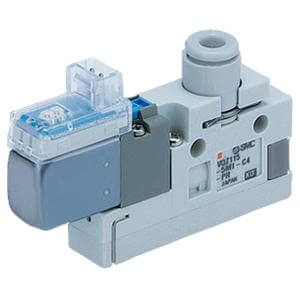

VQZ115, 100 Series, 3 Port Solenoid Valve, Body Ported | VQZ115-5G1-C4-PR-Q
€70,76
Skip to product information
VQZ115, 100 Series, 3 Port Solenoid Valve, Body Ported | VQZ115-5G1-C4-PR-Q
€70,76
VAT not included.
3 Port solenoid valve
Series VQZ base mount solenoid valves combine convenience with durability and performance in a more traditional mounting style. Series VQZ Body Ported Solenoid Valves combine flexibility with high performance and long life in an inline body style.
Features
- Fluid: air, inert gas
- Operating pressure range: 0.1 - 0.7MP
- (high pressure style 1.0MPa)
- 0.2mm² (poppet)
- Coil rated voltage: 12, 24VDC;
- 100, 110, 200, 200VAC
- Response time ms 2 : standard 1W 10 or less;
- high pressure 1W, low wattage and AC 13 or less
Specifications
- Part number: VQZ115-5G1-C4-PR-Q
- Item number: 00455974
- Function: Standard (1W DC, AC)
- Electrical Entry: G (Grommet)
- Port Size: C4 (ø4 One-touch Fitting)
- Coil Voltage: 5 (24VDC)
- Model: PR (Single Unit Type)
- CE Compliant: Q (CE Marked)
- Option: None
- Manual Override: Non-locking Push Style
- Lead time: 18 days
- Country of origin: JP
