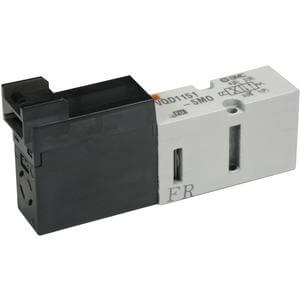

VQD1000, 4 Port Direct Poppet Valve | VQD1151-5L-M5-Q
€48,39
VAT not included.
4 PORT SOLENOID VALVE
VQD1000 series 4 port, direct operated, poppet solenoid valve offers large flow capacity in a compact, lightweight body. Vacuum applications (up to -100kPa) are possible. Components of the VQD1000 valves that are in contact with fluid are all copper free. The VQD series offers a remarkably quick and stable response time.
Features
- Fluid: Air/inert gas
- Operating pressure range: 0MPa/10Torr (Vacuum) - 0.7MPa (7.1kgf/cm 2 )
- Effective area (Cv factor): Standard type 0.9mm 2 (0.05);
- high flow type 1.5mm 2 (0.08)
- Coil rated voltage: 12, 24VDC
- Response time: ON: 4ms; OFF: 2ms
- Ambient/fluid temp: -10 to 50°C
Specifications
- Part number: VQD1151-5L-M5-Q
- Item number: 00551579
- Body: 5 (Base mounted)
- Option: Standard (2W)
- Voltage: 5 (24VDC)
- Lead Wire: L (L Plug Connector w/Lead Wire 0.3 M)
- Port Size: M5 Thread
- CE Marked: Q (CE Marked)
- Lead time: 20 days
- Country of origin: JP
