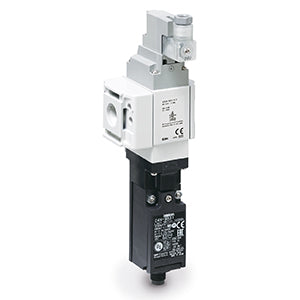

VP546/746, 3-Port Solenoid Valve, Residual Pressure Release with Detection of Main Valve Position, Modular Connection | VP746-5YZ1-M-D
€430,26
VAT not included.
3 PORT SOLENOID VALVE
Applicable series: AC-D
Features
- Modular connection type for connecting to FRL units
- With main valve position detection function
- Optional soft start-up function
- Selectable single or dual residual pressure exhaust valve
- A check valve is incorporated in the pilot flow path
- Enclosure: IP65.
Specifications
- Part number: VP746-5YZ1-M-D
- Item number: 02285341
- Series: 7 (VP700)
- Pilot: Internal Pilot
- Pressure Specification: Standard (0.7 MPa)
- Rated Voltage: 5 (24 VDC)
- Electrical Entry: YZ (DIN EN 175301-803C Terminal w/Light & Surge Voltage Suppressor)
- Safety Limit Switch/Wiring: M [M12 Connector (Made by OMRON)]
- Flow Direction: Left to Right
- No. of Residual Pressure Exhaust Valves: D (Dual)
- Soft start-up Function: None
- Thread: Rc (or None)
- Lead time: 3 days
- Country of origin: JP
