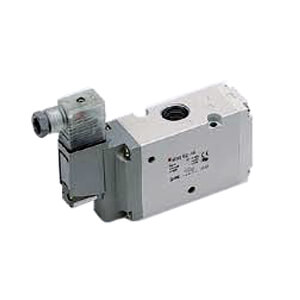

VP700, 3 Port Pilot Operated Poppet | VP742K-5YD1-03FA
€163,20
VAT not included.
3 PORT SOLENOID VALVE
High flow capacity:Cv1.0 (VP300), Cv2.3 (VP500), Cv4.0 (VP700). Low power consumption: 1.8W(DC).Possible to use as either selector valve or divider valve.Changeable from normallyclosed style to normally open style. Vacuum applicable: Up to –101.2kPa.
Features
- 3 Port Pilot Operated Poppet (VP700).
- Port size: 3/8, 1/2.
- Body ported, Base mounted.
- Normally Closed or Normally Open (Changeable).
Specifications
- Part number: VP742K-5YD1-03FA
- Item number: 01220981
- Body Style: 2 (Body Ported)
- Valve Option: Standard (Internal pilot)
- Pressure Specification: K [High-pressure type (1.0 MPa)]
- Coil Specification: Standard
- Rated Voltage: 5 (24V DC)
- Electrical Entry: Y [DIN terminal, With connector (EN175301-803)]
- Light and Surge Voltage Suppressor: None
- Manual Override: D (Push-turn Locking Slotted Type)
- Port Size: 03 (3/8)
- Thread: F [G (PF)]
- Actuation: A (Normally closed)
- Option: None
- Made to Order: None
- Lead time: 23 days
- Country of origin: JP
