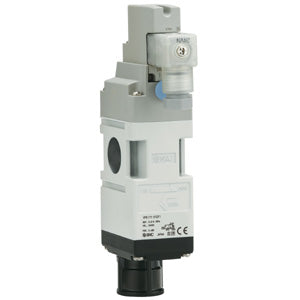

VP517/717, 3 Port Solenoid, Residual Pressure Relief, Modular Connection | VP717Y-5Y1
€118,62
Skip to product information
VP517/717, 3 Port Solenoid, Residual Pressure Relief, Modular Connection | VP717Y-5Y1
€118,62
VAT not included.
3 PORT SOLENOID VALVE
Modular connection type for connecting to FRL units Saves space and reduces piping work Low power consumption: 0.35 W (Without light) Enclosure: IP65.
Features
- Modular connection type for connecting to FRL units
- Saves space and reduces piping work
- Low power consumption: 0.35 W (Without light)
- Enclosure: IP65.
Specifications
- Part number: VP717Y-5Y1
- Item number: 01685653
- Series: 7 (VP700)
- Pressure Specification: Standard (0.7 MPa)
- Rated Voltage: 5 (24 VDC)
- Electrical Entry: Y [DIN Terminal (EN175301-803C) w/Connector]
- Light/Surge Voltage Suppressor: w/o Light/Surge Voltage Suppressor
- Manual Override: Non-locking Push Type
- Bracket: Without bracket
- Flow Direction: Left to Right
- Lead time: 19 days
- Country of origin: JP
