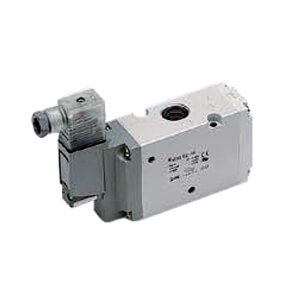

VP300, 3 Port Pilot Operated Poppet | VP344RK-5YOD1-01FA
€104,75
Skip to product information
VP300, 3 Port Pilot Operated Poppet | VP344RK-5YOD1-01FA
€104,75
VAT not included.
3 PORT SOLENOID VALVE
High flow capacity:Cv1.0 (VP300), Cv2.3 (VP500), Cv4.0 (VP700). Low power consumption: 1.8W(DC).Possible to use as either selector valve or divider valve.Changeable from normallyclosed style to normally open style. Vacuum applicable: Up to –101.2kPa.
Features
- 3 Port Pilot Operated Poppet (VP300).
- Port size: 1/8, 1/4.
- Body ported, Base mounted.
- Normally Closed or Normally Open (Changeable).
Specifications
- Part number: VP344RK-5YOD1-01FA
- Item number: 02959697
- Port Size: 01 (1/8)
- Actuation: A (Normally Closed)
- Valve Option: R (External Pilot)
- Coil Specification: Standard
- Manual Override: D (Push-turn Locking Slotted Type)
- Rated Voltage: 5 (24V DC)
- Thread: F [G (PF)]
- Made to Order: None
- Light and Surge Voltage Suppressor: None
- Electrical Entry: YO [DIN terminal, Without connector (EN175301-803)]
- Body Style: 4 (Base Mounted)
- Pressure Specification: K [High-pressure type (1.0 MPa)]
- Option: None
- Lead time: 23 days
- Country of origin: JP
