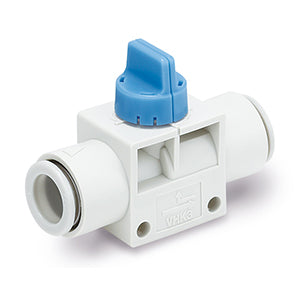

VHK-A, Finger Valve, One-touch Fitting | VHK2A-10F-10F

FINGER VALVE

Finger valve Max. operating pressure: 1.0 MPa Operating vacuum pressure: -100 kPa 2 models: 2- and 3-port valve 2/3-port valves can be distinguished by the colour of their knobs Many piping variations.

Features

• 1(P)/2(A) One-touch fitting.
• Max. operating pressure: 1.0 MPa.
• Operating vacuum pressure: -100 kPa.
• 2 models: 2- and 3-port valve.
• 2/3-port valves can be distinguished by the colour of their knobs.

Specifications

• Part number: VHK2A-10F-10F
• Item number: 01981893
• Valve: 2 (2-Port Valve)
• 1(P) Applicable Tubing O.D.: ø 10
• 2(A) Applicable Tubing O.D.: ø 10
• Knob Colour: Grey (2-port)
• Blue (3-port):
• Bracket: None
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
