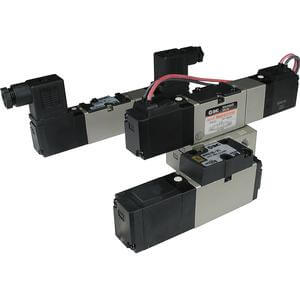

VFR2000, Plug-in & Non Plug-in Types, Metric | VFR2210-5D-Q
€180,49
VAT not included.
5 PORT SOLENOID VALVE
Series VFR consists of 5 port pilot solenoid valves with rubber seals and base mounted type manifolds, available in plug-in and non plug-in styles. Port sizes range from 1/8 to 1/2 with Rc(PT), NPTF & G(PF) thread types available. Various options also available.
Features
- VFR2000, plug-in & non plug-in types
- Maximum operating pressure: up to 0.9MPa
- Ambient & fluid temperature: Max. 50°C
- Manual override: non locking push style.
Specifications
- Part number: VFR2210-5D-Q
- Item number: 00435168
- Function: 2 (2 Position Double)
- Body Option: 10 (Base Mounted Non Plug-in)
- Pilot: Internal Pilot
- Voltage: 5 (24VDC)
- Lead Wire: D (DIN Terminal w/Connector)
- Surge Suppressor: None
- Manual Override: Non-locking Push Style (Flush)
- Port Size: w/o Sub-plate
- Thread: Rc (PT)(or None)
- Q: Q (CE Marked)
- Lead time: 22 days
- Country of origin: JP
