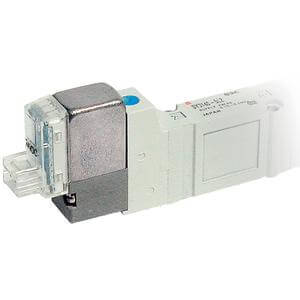

SY9000, 5 Port Solenoid Valve, All Types | SY9120-5MOU-C8F-Q
€85,76
Skip to product information
SY9000, 5 Port Solenoid Valve, All Types | SY9120-5MOU-C8F-Q
€85,76
VAT not included.
5 PORT SOLENOID VALVE
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Features
- Fluid: Air.
- Operating pressure range: -100 kPa to 0.7.
- Ambient and fluid temperature [°C]: -10 to 50 (No freezing).
- Coil rated voltage [DC]: 24, 12 V.
- Enclosure: IP67 (Based on IEC60529).
Specifications
- Part number: SY9120-5MOU-C8F-Q
- Item number: 00685417
- Type of actuation: 1 (2 Position Single)
- Manifold Type: 20 (Body Ported)
- Pilot Type: Internal Pilot
- Coil Specifications: Standard
- Rated voltage: 5 (24VDC)
- Electrical Entry: MO (M Plug w/o Connector)
- Light/surge voltage suppressor: U (Surge Suppressor w/Light Non-polar)
- Manual Override: Non-locking Push Style
- A, B Port Size: C8 (Body Ported ø8 One-touch Fitting)
- Thread: F (G)
- Made to Order: None
- Lead time: 25 days
- Country of origin: JP
