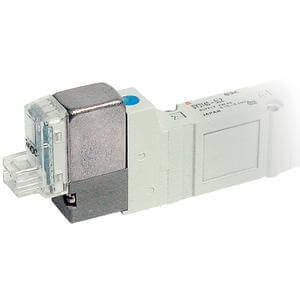

SY7000, 5 Port Solenoid Valve, All Types | SY7340-5MOU-Q
€113,23
Skip to product information
SY7000, 5 Port Solenoid Valve, All Types | SY7340-5MOU-Q
€113,23
VAT not included.
5 PORT SOLENOID VALVE
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Features
- Fluid: Air.
- Operating pressure range: -100 kPa to 0.7.
- Ambient and fluid temperature [°C]: -10 to 50 (No freezing).
- Coil rated voltage [DC]: 24, 12 V.
- Enclosure: IP67 (Based on IEC60529).
Specifications
- Part number: SY7340-5MOU-Q
- Item number: 00242264
- Type of actuation: 3 (3 Position Closed Centre)
- Manifold Type: 40 (Base Mounted)
- Pilot Type: Internal Pilot
- Coil Specifications: Standard
- Rated voltage: 5 (24VDC)
- Electrical Entry: MO (M Plug w/o Connector)
- Light/surge voltage suppressor: U (Surge Suppressor w/Light Non-polar)
- Manual Override: Non-locking Push Style
- Port Size: Base Mounted w/o Sub-plate
- Thread: Rc (or None)
- Option: None
- Made to Order: None
- Lead time: 28 days
- Country of origin: JP
