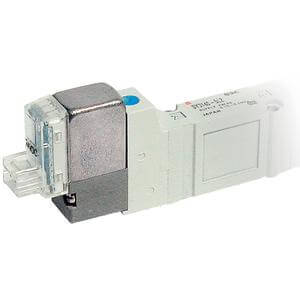

SY7000, 5 Port Solenoid Valve, All Types | SY7320-5YO-02F-Q
€103,26
VAT not included.
5/3 CC VALVE 1/4 PORTED 24VDC
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Features
- Fluid: Air.
- Operating pressure range: -100 kPa to 0.7.
- Ambient and fluid temperature [°C]: -10 to 50 (No freezing).
- Coil rated voltage [DC]: 24, 12 V.
- Enclosure: IP67 (Based on IEC60529).
Specifications
- Part number: SY7320-5YO-02F-Q
- Item number: 00078450
- Type of actuation: 3 (3 Position Closed Centre)
- Manifold Type: 20 (Body Ported)
- Pilot Type: Internal Pilot
- Coil Specifications: Standard
- Rated Voltage: 5 (24VDC)
- Electrical Entry: YO [DIN Terminal w/o Connector (DIN 43650C)]
- Lead Wire Length: None
- Light/surge voltage suppressor: None
- Manual Override: Non-locking Push Style
- Port Size: 02 (Body Ported 1/4, Base Mounted Sub-plate 1/4)
- Thread: F (G)
- Option: None
- CE Marked: Q (CE Marked)
- Lead time: 5 days
- Country of origin: JP
