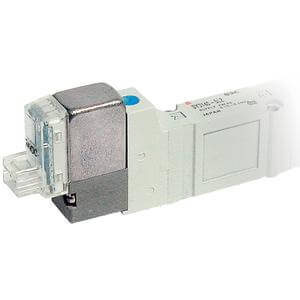

SY5000, 5 Port Solenoid Valve, All Types, M8 Connector (IEC60947-5-2) | SY5520-5WAOU-C8F-Q
€125,85
Skip to product information
SY5000, 5 Port Solenoid Valve, All Types, M8 Connector (IEC60947-5-2) | SY5520-5WAOU-C8F-Q
€125,85
VAT not included.
5 PORT SOLENOID VALVE
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Features
- Fluid: Air.
- Operating pressure range: -100 kPa to 0.7.
- Ambient and fluid temperature [°C]: -10 to 50 (No freezing).
- Coil rated voltage [DC]: 24, 12 V.
- Enclosure: IP67 (Based on IEC60529).
Specifications
- Part number: SY5520-5WAOU-C8F-Q
- Item number: 00453610
- Type of Actuation: 5 (3 Position Pressure Center)
- Electrical Entry: WAO (M8 Connector w/o Connector)
- Light/Surge Voltage Suppressor: U (With light/surge voltage suppressor (Non-polar type))
- Pilot Type: Internal Pilot
- A, B Port Size: C8 (Body Ported ø8 One-touch Fitting)
- Manifold Type: 20 (Body Ported Plug-in Integrated)
- Manual Override: Non-locking Push Style
- Rated Voltage: 5 (24VDC)
- Thread: F (G)
- Made to Order: None
- Lead time: 33 days
- Country of origin: JP
