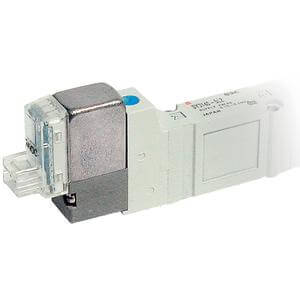

SY5000, 5 Port Solenoid Valve, All Types | SY5420-5DZ-C6F-Q
€119,96
VAT not included.
5/3 VALVE 24VDC
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Features
- Fluid: Air.
- Operating pressure range: -100 kPa to 0.7.
- Ambient and fluid temperature [°C]: -10 to 50 (No freezing).
- Coil rated voltage [DC]: 24, 12 V.
- Enclosure: IP67 (Based on IEC60529).
Specifications
- Part number: SY5420-5DZ-C6F-Q
- Item number: 00025704
- Type of actuation: 4 (3 Position Exhaust Centre)
- Manifold Type: 20 (Body Ported Plug-in Integrated)
- Pilot Type: Internal Pilot
- Coil Specifications: Standard
- Rated voltage: 5 (24VDC)
- Electrical Entry: D (DIN Terminal w/Connector)
- Lead Wire Length: None
- Light/Surge Voltage Suppressor: Z (With light/surge voltage suppressor)
- Manual Override: Non-locking Push Style
- A, B Port Size: C6 (Body Ported ø6 One-touch Fitting)
- Thread: F (G)
- Option: None
- CE Marked: Q (CE Marked)
- Lead time: 5 days
- Country of origin: JP
