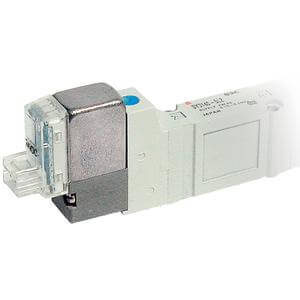

SY3000, 5 Port Solenoid Valve, All Types | SY3420-5YO-M5-Q
€100,27
VAT not included.
5 PORT SOLENOID VALVE
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Features
- Fluid: Air.
- Operating pressure range: -100 kPa to 0.7.
- Ambient and fluid temperature [°C]: -10 to 50 (No freezing).
- Coil rated voltage [DC]: 24, 12 V.
- Enclosure: IP67 (Based on IEC60529).
Specifications
- Part number: SY3420-5YO-M5-Q
- Item number: 02977769
- Coil Specifications: Standard
- Electrical Entry: YO [DIN Terminal w/o Connector (DIN 43650C)]
- Type of actuation: 4 (3 Position Exhaust Centre)
- Pilot Type: Internal Pilot (None for type 60)
- Rated voltage: 5 (24VDC)
- Light/surge voltage suppressor: Without light/surge voltage suppressor
- Option: w/o Bracket
- A, B Port Size: M5 (Body Ported M5X0.8)
- Manifold Type: 20 (Body Ported Plug-in Integrated)
- Manual Override: Non-locking Push Style
- Thread: Rc (or Metric)
- Made to Order: None
- Lead time: 26 days
- Country of origin: JP
