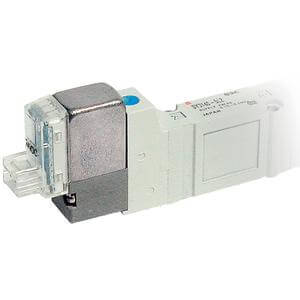

SY3000, 5 Port Solenoid Valve, All Types | SY3320-5YO-C4-Q
€101,05
VAT not included.
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Features
- Fluid: Air.
- Operating pressure range: -100 kPa to 0.7.
- Ambient and fluid temperature [°C]: -10 to 50 (No freezing).
- Coil rated voltage [DC]: 24, 12 V.
- Enclosure: IP67 (Based on IEC60529).
Specifications
- Part number: SY3320-5YO-C4-Q
- Coil Specifications: Standard
- Electrical Entry: YO [DIN Terminal w/o Connector (DIN 43650C)]
- Type of actuation: 3 (3 Position Closed Centre)
- Pilot Type: Internal Pilot (None for type 60)
- Rated voltage: 5 (24VDC)
- Light/surge voltage suppressor: Without light/surge voltage suppressor
- Option: w/o Bracket
- A, B Port Size: C4 (Body Ported ø4 One-touch Fiitting)
- Manifold Type: 20 (Body Ported Plug-in Integrated)
- Manual Override: Non-locking Push Style
- Thread: Rc (or Metric)
- Made to Order: None
