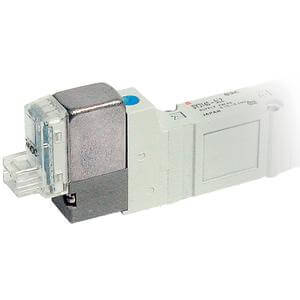

SY3000, 5 Port Solenoid Valve, All Types | SY3140-5WAOU-Q
€68,33
Skip to product information
SY3000, 5 Port Solenoid Valve, All Types | SY3140-5WAOU-Q
€68,33
VAT not included.
5 PORT SOLENOID VALVE
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Features
- Fluid: Air.
- Operating pressure range: -100 kPa to 0.7.
- Ambient and fluid temperature [°C]: -10 to 50 (No freezing).
- Coil rated voltage [DC]: 24, 12 V.
- Enclosure: IP67 (Based on IEC60529).
Specifications
- Part number: SY3140-5WAOU-Q
- Item number: 00453590
- Type of actuation: 1 (2 Position Single)
- Manifold Type: 40 (Base Mounted Non Plug-in Single)
- Pilot Type: Internal Pilot (None for type 60)
- Coil Specifications: Standard
- Rated voltage: 5 (24VDC)
- Electrical Entry: WAO [M8 Connector w/o Connector (IEC60947-5-2)]
- Lead Wire Length: None
- Light/Surge Voltage Suppressor: U (With light/surge voltage suppressor (Non-polar type))
- Manual Override: Non-locking Push Style
- A, B Port Size: Base Mounted w/o Sub-plate
- Thread: Rc (or Metric)
- Option: w/o Bracket
- CE Marked: Q (CE Marked)
- Lead time: 5 days
- Country of origin: JP
