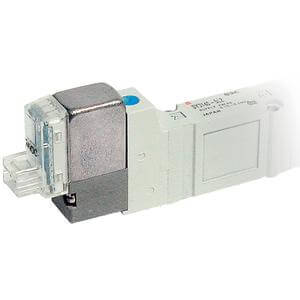

SY300, 3 Port Solenoid Valve, Body Ported | SY313-5MOU-C4-Q
€54,93
Skip to product information
SY300, 3 Port Solenoid Valve, Body Ported | SY313-5MOU-C4-Q
€54,93
VAT not included.
3 PORT SOLENOID VALVE
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Features
- Fluid: Air.
- Operating pressure range: -100 kPa to 0.7.
- Ambient and fluid temperature [°C]: -10 to 50 (No freezing).
- Coil rated voltage [DC]: 24, 12 V.
- Enclosure: IP67 (Based on IEC60529).
Specifications
- Part number: SY313-5MOU-C4-Q
- Item number: 00855165
- Type of actuation: 1 [Normally closed (N.C.)]
- Solenoid: Single Solenoid
- Coil Specifications: Standard
- Rated voltage: 5 (24VDC)
- Electrical Entry: MO (M Plug w/o Connector)
- Lead Wire Length: None
- Light/Surge Voltage Suppressor: U (With light/surge voltage suppressor (Non-polar type))
- Manual Override: Non-locking Push Style
- A, B Port Size: C4 (Body Ported ø4 One-touch Fiitting)
- Thread: Rc (or Metric)
- Option: w/o Bracket
- Made to Order: None
- CE Marked: Q (CE Compliant)
- Lead time: 21 days
- Country of origin: JP
