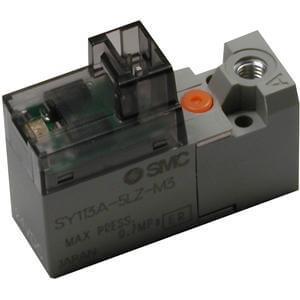

SY100, 3 Port Direct Operated Valve, Rubber Seal | SY113A-5LOU-PM3-Q
€53,95
Skip to product information
SY100, 3 Port Direct Operated Valve, Rubber Seal | SY113A-5LOU-PM3-Q
€53,95
VAT not included.
3 PORT SOLENOID VALVE
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Features
- Fluid: air
- mm²: 0.14 standard style;
- 0.21 large flow capacity style
- Coil rated voltage: 3, 5, 6, 12, 24VDC;
- 100, 110, 200, 220VAC
- Response time: 10ms or less
- Cycle life: 100 million cycles (by SMC life test)
- Ambient & fluid temperature: max. 50°C
Specifications
- Part number: SY113A-5LOU-PM3-Q
- Item number: 00282120
- Function: 1 (Normally Closed)
- Piping: 3 (Body Ported)
- Body Option: A (Large Flow Style)
- Voltage: 5 (24VDC)
- Lead Wire: LO (L Plug w/o Connector)
- Surge Suppressor: U (Surge Suppressor w/Light Non-polar)
- Manual Override: Non-locking Push Style
- Port Size: PM3 (Body Ported for P,R,A-Port M3X0.5)
- Option: None
- Lead time: 5 days
- Country of origin: JP
