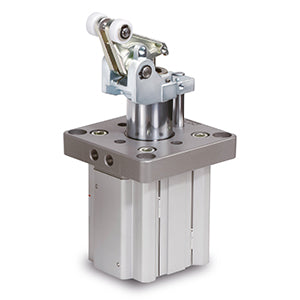

RS2H, Heavy Duty Stopper Cylinder – RS2H50TF-30BM-D
€479,46
Skip to product information
RS2H, Heavy Duty Stopper Cylinder – RS2H50TF-30BM-D
€479,46
VAT not included.
- The RSQ series is a fixed-height stopper cylinder with proven endurance and low breakaway characteristics. The RSG series is an adjustable mounting height stopper cylinder. It can be raised or lowered according to the distance required to stop the work piece. The RSH heavy-duty stopper cylinder is specially designed for use on conveyor lines or other applications requiring an external stopping device.
Key features
- Heavy duty stopper cylinder
- Bore sizes (mm): 50, 63, 80
- Piping available from 2 directions
- Mounting type: flange
- Variety of options available
Specifications
- Bore Size: 50mm
- Port Thread: TF (G Thread)
- Piping: Flange Side
- Stroke: 30mm (RS2H50,63)
- Action: B (Double Acting w/Spring)
- Roller Material: M (Carbon Steel)
- Option: D (Locking Mechanism)
- Port and Lever Position: 0°
- Shock Absorber: Standard
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in Case of No Switch)
- Made to Order: Standard
Additional information
- Part number: RS2H50TF-30BM-D
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: CN
- TARIC code: 8479899790
