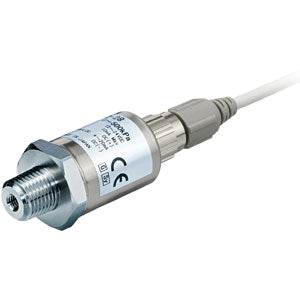

PSE570, General Fluids Pressure Sensor – PSE575-02-N
€109,14
Skip to product information
PSE570, General Fluids Pressure Sensor – PSE575-02-N
€109,14
- Digital pressure switch
- Pressure rates: up to 10 MPa
- Accuracy: up to 1% F.S.
- Output: IO-Link, NPN/PNP or analogue (Voltage/Current)
- Enclosure up to IP65.
Key features
- Applicable fluids: gas or liquid that will not attack or corrode materials of parts in contact with fluid
- 6 rated pressure ranges: -100 to 100 kPa, 0 to 500 kPa, 0 to 1 MPa, 0 to 2 MPa, 0 to 5 MPa, 0 to 10 MPa
- Proof pressure: 3 times higher than the rated pressure
- Outputs: IO-Link, NPN/PNP and analogue (voltage/current).
- Withstand voltage: 500 V AC
- M12 connector for wiring
- Enclosure: IP65.
Specifications
- OUT1 Output Type: None
- Output Specifications: Voltage Output (1~5V) Type
- OUT2 Output Type: None
- Sensor Range: 5 [For Positive Pressure (0~2MPa)]
- OUT2 Hysteresis (H2): None
- OUT1 Set Value (P1/n1): None
- Port Size: 02 [R1/4 (M5 Female Thread)]
- OUT1 Hysteresis (H1): None
- Lead Wire: N (None)
- OUT2 Set Value (P2/n2): None
Additional information
- Part number: PSE575-02-N
- Lead time (days): 23
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 9026202000
