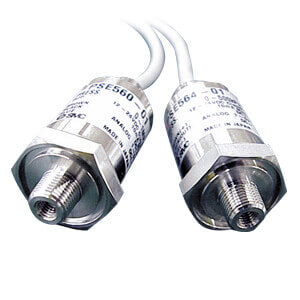

PSE560, Pressure Sensor For General Fluids – PSE564-01-28
€231,32
Skip to product information
PSE560, Pressure Sensor For General Fluids – PSE564-01-28
€231,32
- Digital pressure switch
- Pressure rates: up to 10 MPa
- Accuracy: up to 1% F.S.
- Output: IO-Link, NPN/PNP or analogue (Voltage/Current)
- Enclosure up to IP65.
Key features
- Pressure sensor for general purpose fluids
- Fluid: fluid, including gas, that will not corrode SUS316L
- Accuracy (ambient temp. of 25°C): ¹1%F.S. or less
- Repeatability: ¹0.2%F.S. or less
- Enclosure: IP65
Specifications
- Sensor Range: 4 [For Positive Pressure (0~500kPa)]
- Port Size: 01 [R 1/8 (w/M5 Female Thread)]
- Output Specification: 28 [Current Output (4~20mA) Type]
- Option: None
Additional information
- Part number: PSE564-01-28
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 9026202000
