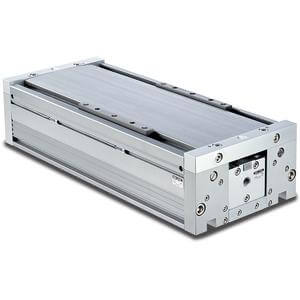

MY1HT, Mechanical Joint Rodless Cylinder, High Precision Guide, High Rigidity – MY1HT63TFG-800H
€7.427,04
VAT not included.
- For long strokes with compact size and an integrated guide, the MY1 series rodless actuator provides an ideal solution. The MY1 mechanical joint rodless cylinder includes four standard models, which allow the appropriate bearing style to be selected in order to match the accuracy and load requirements of your application. If necessary, you can also combine the basic MY1 cylinder with an external guide in order to create a special engineered solution. Piping options can be selected according to the application. MY1 is available in 9 bore sizes from 16mm to 100mm. Standard strokes are available up to 2000mm with a 5000mm long stroke option on some bore sizes.
Key features
- High precision guide, high rigidity type
- Two linear guides
- Bore sizes: 50, 63 (mm)
- Strokes up to 2000mm available
- Auto switch capable
Specifications
- Copper Free Specification: None
- Bore Size: 63mm
- Port Thread: TF (G)
- Piping: G (Centralized Piping)
- Stroke: 800mm
- Stroke Adjusting Unit: H (2 Shock Absorbers at Each Stk End)
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch or Prewired Connector)
Additional information
- Part number: MY1HT63TFG-800H
- Lead time (days): 39
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
