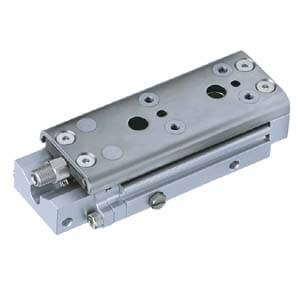

MXQ*B-Z, Air Slide Table, Low Thrust with High Rigidity Type – MXQ12B-40Z
€419,82
Skip to product information
MXQ*B-Z, Air Slide Table, Low Thrust with High Rigidity Type – MXQ12B-40Z
€419,82
VAT not included.
- Air Slide Table, Double Acting
- High rigidity in a compact and lightweight design
- Bore sizes (mm): 6, 8, 12, 16, 20, 25
- Strokes up to 150 mm
- 4 body types
- Various stroke adjusters
- Many options and made to order available.
Key features
- Higher rigidity: Guide rigidity improved by 50%.
- Up to 23% more compact.
- Up to 44% lighter.
- 55% Less air consumption.
Specifications
- Bore Size: 12 mm
- Body Option: B (Standard)
- Stroke: 40 mm
- Adjuster Option: Z (Without Adjuster)
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
- Made to Order: None
Additional information
- Part number: MXQ12B-40Z
- Lead time (days): 3
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
