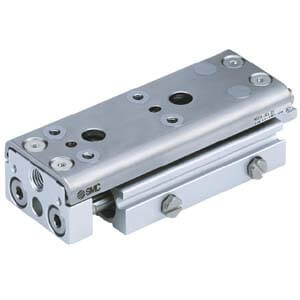

MXQ*A-Z, Air Slide Table, Double Ported Type – MXQ12A-50Z
€447,28
Skip to product information
MXQ*A-Z, Air Slide Table, Double Ported Type – MXQ12A-50Z
€447,28
VAT not included.
- Air Slide Table, Double Acting
- High rigidity in a compact and lightweight design
- Bore sizes (mm): 6, 8, 12, 16, 20, 25
- Strokes up to 150 mm
- 4 body types
- Various stroke adjusters
- Many options and made to order available.
Key features
- More compact: High reduced up to 10%.
- Lighter: Weight reduced up to 35%.
- More flexible: Piping ports and auto switch mounting grooves on both sides.
- Auto switch visibility improved.
Specifications
- Bore Size: 12 mm
- Lube-retainer: Without Stable Lubrication Function
- Stroke: 50 mm
- Adjuster Option: Z (Without Adjuster)
- Functional Option: Without Functional Option
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
- Made to Order: None
Additional information
- Part number: MXQ12A-50Z
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
