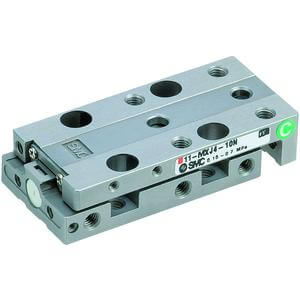

MXJ, Miniature High Precision Slide Table (ø4.5, ø6, ø8) – MXJ8-5
€289,39
VAT not included.
- Air slide table, double acting
- High precision linear guide
- Bore sizes (mm): 4.5, 6, 8, 12 and 16
- Strokes up to 50 mm
- Compact and lightweight design.
Key features
- Strokes up to 20 mm.
- Front and top mounting.
- Travelling parallelism: 0.005 mm.
- Clean room specification available.
- Operating pressure range: 0.15 to 0.7 MPa.
Specifications
- Specification: Standard Type
- Bore Size: 8mm
- Symmetric Type: Standard
- Stroke: 5mm
- Adjuster: w/o Adjuster
- Function: w/o Axial Piping
- Switch Rail: w/Magnet & Switch Rail
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 05 M (Or None in the Case of No Auto Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MXJ8-5
- Lead time (days): 19
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
