MSQB1-7, Rotary Table Rack & Pinion Type – MSQB7AE
€325,38
VAT not included.

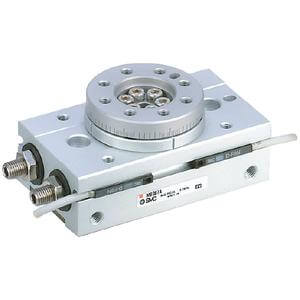

- The MSQ compact rotary table is ideal for material transfer applications. It incorporates load bearings and a mounting face with a rack-and-pinion style rotary actuator. The seven sizes are 10, 20, 30, 50, 70, 100, and 200 with rotational adjustments from 0-190 degrees, and auto switch capability. Additional features include a hollow shaft and direct load mounting possibility.
Key features
- Compact rotary table, rack-and pinion type
- Sizes: 1, 2, 3, 7
- Universal mounting style
- Wiring and piping can be selected according to mounting conditions
- Angle adjustment range: 0 to 190
Specifications
- Clean Series: None
- Model: MSQ
- Type: B (Basic Type)
- Size: 7
- Port Location: E (Front Port)
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m [Or None in the Case of No Switch]
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MSQB7AE
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
