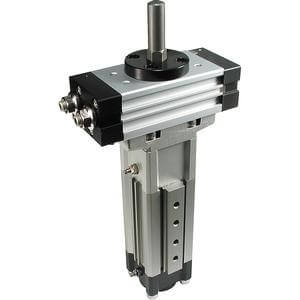

MRQ*32/40, Rotary Actuator – MRQBS40-75CA
€812,78
Skip to product information
MRQ*32/40, Rotary Actuator – MRQBS40-75CA
€812,78
VAT not included.
- The MRQ provides linear and rotary motion either simultaneously or alternately. It meets many handling applications, is simple to use, and when combined with SMC grippers, provides combined motions for picking, transferring, and rotation. Available in 32 and 40mm bores with strokes from 5 to 100mm; rotation from 90° to 180°. Connection ports are available on both sides of the cylinder, as well as end-of-stroke sensing for all positions.
Specifications
- Thread: Rc(PT)
- Mounting: B (Basic Style)
- Size: 40mm
- Stroke: 75mm
- Air Cushion: C (Air Cushion on Linear Motion Part)
- Rotation Angle: A (80°~100°)
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 4 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MRQBS40-75CA
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412390090
