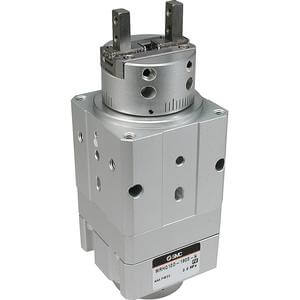

MRHQ, Rotary Gripper, Parallel Type, 2 Finger – MRHQ16D-90S-N
€1.024,64
Skip to product information
MRHQ, Rotary Gripper, Parallel Type, 2 Finger – MRHQ16D-90S-N
€1.024,64
VAT not included.
- The MRHQ series is a rotary gripper suitable for holding and reversing work pieces on transfer lines. The compact integration of gripping and rotating functions eliminates the peripheral piping and wiring of the previous product (rotary table + adapter + air gripper). The length of the MRHQ series has been reduced by approximately 20% compared with the previous products.
Key features
- Rotary Gripper.
- Size: 10, 16, 20, 25.
- Modular construction.
- Can be mounted from five directions: two ends and three sides of the body.
- Auto switch capable.
Specifications
- Gripper ID: 16mm
- Action: D (Double Acting)
- Rotation Angle: 90°
- Switch at Gripper: N (No Switch)
- Gripper Sw. Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number Switch at Gripper: 2 pcs. (Or None in the Case of No Switch)
- Switch at Rotation: No Switch
- Rotation Sw. Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number Switch at Rotation: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MRHQ16D-90S-N
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
