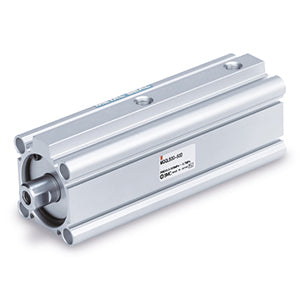

MQQ, Compact Cylinder, Metal Seal, Low Friction – MQQTB20-60D
€342,02
Skip to product information
MQQ, Compact Cylinder, Metal Seal, Low Friction – MQQTB20-60D
€342,02
VAT not included.
- The MQQ cylinder is a compact, low friction cylinder designed for low pressure, low speed, uniform speed or low friction applications. MQQ is available as standard or a lateral load resisting type (with built-in ball bushings). Bore sizes range from 10mm to 28mm and strokes are available up to 100mm.
Key features
- Low friction, metal seal cylinders.
- Bore sizes: 10, 16, 20, 25, 32, 40mm.
- Available in a lateral load resisting type.
- Long service life of 10,000 km for 100 million full cycles.
Specifications
- Style: T (Standard)
- Mounting: B [Through Hole Both Ends Tapped Common (Standard)]
- Bore Size: 20mm
- Port Thread: M Thread ø10 to ø20, RC ø25 to ø40
- Stroke: 60
- Body Option: Standard (Rod End Female Thread)
Additional information
- Part number: MQQTB20-60D
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412310090
