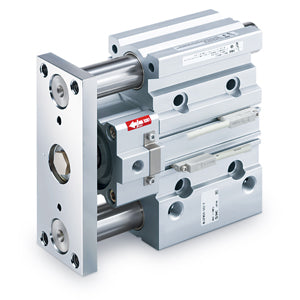

MLGP-B/F-Z (ø20 to ø32), Standard Guided Cylinder with One-way Lock – MLGPM20TF-75Z-B
€393,62
VAT not included.
- Compact guide cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100
- Strokes up to 400 mm
- Multiple mounting surfaces.
Key features
- With lock.
- Stopping possible at any stroke position.
- Locking direction selectable.
- Compactness & Lightness.
- Bore size: 20, 25, 32, 40, 50, 63, 80, 100 (mm).
- Strokes from 20 to 350mm (depending upon bore size).
- 4 types of mounting are possible: top mounting, side mounting, bottom mounting and T-slot side mounting.
- Auto switches can be mounted on 2 surfaces.
Specifications
- Bearing Style: M (Slide Bearing)
- Bore Size: 20mm
- Port Type: TF (G)
- Stroke: 75
- Locking Direction: B (Retraction Stroke Lock)
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MLGPM20TF-75Z-B
- Lead time (days): 31
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
