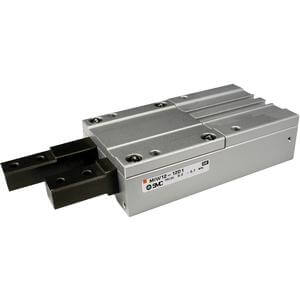

MIW, Escapement, 2 Finger Type – MIW12-12DA
€333,61
Skip to product information
MIW, Escapement, 2 Finger Type – MIW12-12DA
€333,61
VAT not included.
- Series MIW is a slider guide cylinder, with two sequentially operating fingers. The sequential operation uses a mechanically interlocking cam mechanism in addition to control of air passage to the pistons for reliable separation of work pieces. Separation of the piston and fingers allows easy replacement of fingers for maintenance. Three different finger variations make it possible to freely select attachment mounting surfaces on the fingers.
Key features
- Bore sizes: 8, 12, 20, 25, 32 mm
- Stroke lengths: 10, 20, 30, 50 mm
- Scraper option
- Stroke adjuster option
- Auto-switch capable
Specifications
- Bore Size: 12mm
- Thread: M Thread
- Stroke: 12mm
- Finger Option: Basic Style (Standard)
- Stroke Adjusting Unit: A (Yes)
- Scraper: No
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MIW12-12DA
- Lead time (days): 5
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
