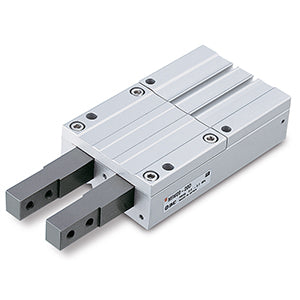

Double Finger - MIW – MIW12-12D2A
€340,62
Skip to product information
Double Finger - MIW – MIW12-12D2A
€340,62
VAT not included.
- Sequentially operate fingers thanks to interlocking cam mechanism for reliable separation of pieces
Key features
- Double acting
- Stroke tolerance 0 to +1 mm.
Specifications
- Bore Size: 12mm
- Thread: M Thread:8~25 Bore, Rc: 32 Bore
- Stroke: 12mm
- Finger Option: 2 [Tapped on All Faces (5 Surfaces Including End Surface)]
- Stroke Adjusting Unit: A (Yes)
- Scraper: No
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MIW12-12D2A
- Lead time (days): 3
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
