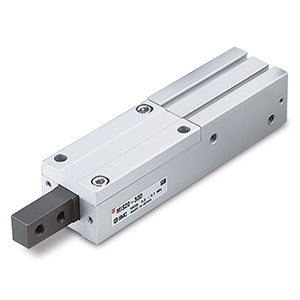

Single Finger - MIS – MIS20-10D
€241,61
VAT not included.
- Series MIS is a one-finger type escapement. The MIS has independent fingers for free setting of timing and mounting position to accommodate the work pieces moving down a line. Supply ports on both sides allow selection of piping direction. Separation of the piston and fingers allows easy replacement of fingers for maintenance. Three different finger variations make it possible to freely select attachment mounting surfaces on the fingers.
Key features
- Double acting
- Stroke tolerance 0 to +1 mm.
Specifications
- Bore Size: 20mm
- Thread: M Thread:8~25 Bore, Rc: 32 Bore
- Stroke: 10mm
- Finger Option: Basic Style (Standard)
- Stroke Adjusting Unit: No
- Scraper: No
- Auto Switch: No Switch
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
Additional information
- Part number: MIS20-10D
- Lead time (days): 3
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
